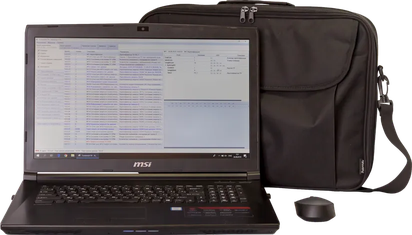

Impulse-374 Operational-Investigative Activities Control Point Simulator
Carrier Equipment / Diagnostic Tools
-
Designed to verify the operability of telecom operator equipment that ensures the execution of prescribed actions during Operational-Investigative Activities (OIA) and to test (in both automated and manual modes) the functioning of that equipment, in accordance with the requirements of the following orders:
- Order of the Ministry of Telecom and Mass Communications (MinComSvyaz) of Russia No. 139 dated April 15, 2019
- Order of the Ministry of Telecom and Mass Communications (MinComSvyaz) of the Russian Federation No. 646 dated November 5, 2019
- Order of the Ministry of Telecom and Mass Communications (MinComSvyaz) of Russia No. 86 dated February 26, 2018
- Order of the Ministry of Digital Development (MinTsifry) of Russia No. 573 dated October 29, 2018
- Order of the Ministry of Digital Development (MinTsifry) of Russia No. 571 dated October 29, 2018
- Order of the Ministry of Digital Development (MinTsifry) of Russia No. 630 dated July 12, 2023
- Order of the Ministry of Digital Development (MinTsifry) of Russia No. 47 dated January 26, 2023
- Order of the Ministry of Digital Development (MinTsifry) of Russia No. 750 dated August 28, 2023
- Order of the Ministry of Digital Development (MinTsifry) of Russia No. 935 dated November 1, 2023
Price: starting from 840 thousand RUB
Copyright holder: ООО "Signatec"
Basis for rights transfer: license agreement
For details on configuration, specs, and to get the best setup with final pricing, contact our sales team at market@signatec.ru.
-
Verification of the functioning of technical means for storing voice information, as used in operational-investigative activities (OIA), according to Order No. 86
-
Interaction with technical means for OIA via control and data transfer protocols:
— generating and sending control commands to technical means for OIA
— receiving and processing responses to sent commands and notifications from technical means for OIA
— obtaining accumulated data and subscriber connection information from technical means for OIA
-
Multi‑console connection mode to technical means for OIA (up to 100 connections), with the ability to simultaneously send a set of commands across all connections
-
Analysis of received messages from technical means for OIA, structure visualization with field and element value decoding of responses and notifications, including byte-by-byte viewing
-
Notification of receipt of messages that do not conform to the format, indicating erroneous fields and bytes
-
Automatic analysis of connection code information for compliance with base code list values
-
Construction of commands sent to technical means for OIA, with the ability to manually specify the content of all fields
-
Creation of command execution scenarios to automate testing procedures
-
Playback of decoded voice information, video calls, and display of SMS messages
-
Analysis of command execution time to verify technical means for OIA performance requirements
-
Export of technical means for OIA interaction log to a file, with subsequent import or printing in tabular form
Verification of the functioning of data network Technical Means of the Operational-Investigative Activities (OIA), according to Order No. 139
-
Interaction with technical means for OIA via control and data transfer protocols:
— generating and sending control commands to technical means for OIA
— receiving and processing responses to sent commands and notifications from technical means for OIA
— receiving notifications containing data selected by technical means for OIA according to control conditions
-
Analysis of received messages from technical means for OIA, structure visualization with field and element value decoding of responses and notifications, including byte-by-byte viewing
-
Notification of receipt of messages that do not conform to the format, indicating erroneous fields and bytes
-
Construction of commands sent to technical means for OIA, with the ability to manually specify the content of all fields
-
Creation of command execution scenarios to automate testing procedures
-
Viewing the content of messages and files selected and decoded by technical means for OIA, including the ability to play back IP telephony voice data
-
Saving selected IP traffic to PCAP format files
-
Export of technical means for OIA interaction log to a file, with subsequent import or printing in tabular form
Verification of the functioning of information systems that contain subscriber databases and records of communication services provided by the telecom operator—hereinafter referred to as Information Systems of OIA (Information Systems for Operational-Investigative Activities)—according to Order No. 573.
-
Interaction with Information Systems for OIA in accordance with ASN.1 interaction protocol encoding parameters:
— interaction with INformation Systems for OIA via DC1, DC2, DC3, DC4, and DC5 channels, including the use of SSL and TLS secure protocols
— generating and sending commands and requests to Information Systems for OIA
— receiving and processing responses to sent commands and signals from Information Systems for OIA
— receiving reports from Information Systems for OIA, including those containing subscriber messages
-
Analysis of received messages from Information Systems for OIA, structure visualization with field and element value decoding of responses and notifications, including byte‑by‑byte viewing
-
Notification of receipt of messages from Information Systems for OIA that do not conform to ASN.1 interaction protocol encoding parameters
-
Ability to construct requests sent to Information Systems for OIA with arbitrary structure
-
Export of Information Systems for OIA interaction log to a file, with subsequent import or printing in tabular form
Verification of the functioning of software and hardware means used by the information dissemination organizer (HW/SW means for OIA of the Information Dissemination Organizer)—according to Order No. 571.
-
Interaction with HW/SW means for OIA of the Information Dissemination Organizer in accordance with ASN.1 interaction protocol encoding parameters:
— interaction with HW/SW means for OIA of the Information Dissemination Organizer via DC1, DC2, DC3, and DC4 channels, including the use of SSL and TLS secure protocols
— generating and sending requests to HW/SW means for OIA of the Information Dissemination Organizer
— receiving and processing responses to sent requests and signals from HW/SW means for OIA of the Information Dissemination Organizer
— receiving reports from HW/SW means for OIA of the Information Dissemination Organizer with information about IS ORI users
-
Analysis of received messages from PTS ORM ORI, structure visualization with field and element value decoding of responses and notifications, including byte‑by‑byte viewing
-
Notification of receipt of messages from PTS ORM ORI that do not conform to ASN.1 interaction protocol encoding parameters
-
Ability to construct requests sent to PTS ORM ORI with arbitrary structure
-
Analysis of request execution time to verify HW/SW means for OIA of the Information Dissemination Organizer performance requirements and task execution priorities
-
Export of HW/SW means for OIA of the Information Dissemination Organizer interaction log to a file, with subsequent import or printing in tabular form
-
Connecting to equipment
-
The Impulse-374 control point simulator is connected to technical means interfaces either directly or via communication channels, using L2TP/IPsec VPN connection
-
-
Tech architecture
Languages and components:
- C++ / OpenSSL
- C# / WPF
Number of simultaneously tested primary groups (E1) 1-8 Power supply voltage from 50 Hz AC mains 220 V Power consumption of the technical means for OIA connection unit no more than 10 W Dimensions of the technical means for OIA connection unit 200×82×32 mm Dimensions of the product in carrying case 600×470×170 mm Weight of the technical means for OIA connection unit no more than 0.6 kg Weight of the product in carrying case no more than 8.5 kg
The benefits of your products
Reliability
Our specialists provide comprehensive technical support at all stages — from development through deployment. All products undergo multi-level testing, ensuring stability and reliability.
Efficiency
A unique database of past technical solutions and years of R&D under civil and military standards allows us to deliver the most effective results — fast.
Flexibility
Modular design, scalability, and easy integration with each other or with your existing equipment give you the flexibility to solve specific tasks.
In‑house production
We have our own production facilities — over 3,000 sq. m. in Novosibirsk and Moscow. A well‑established base lets us handle orders of any complexity at the cutting edge of technology.
Compliance

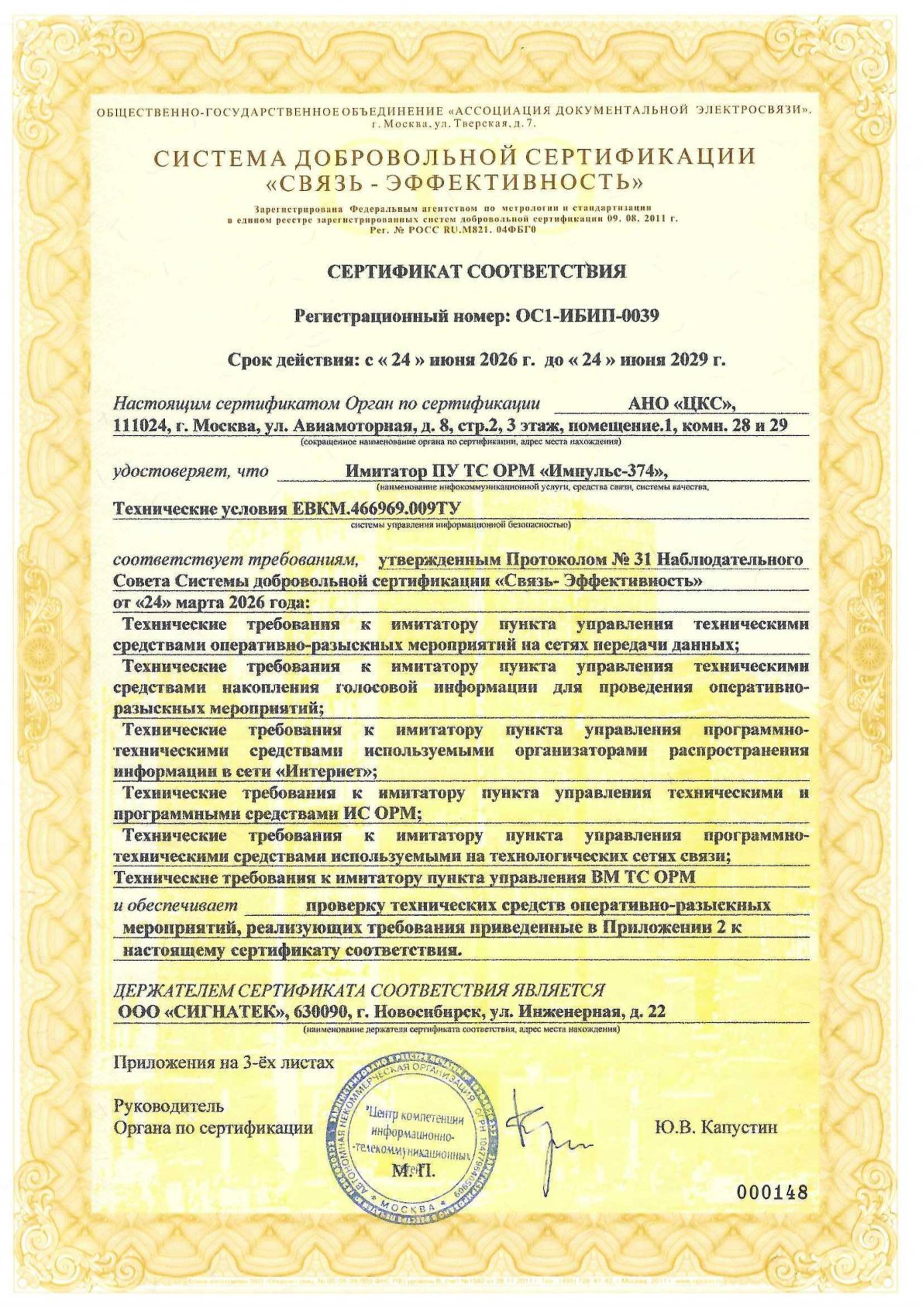

All solutions are built in full compliance with regulatory legal acts and are certified to meet mandatory requirements. We also run a quality management system that follows GOST R ISO 9001‑2015 and GOST RV 0015‑002‑2020.
